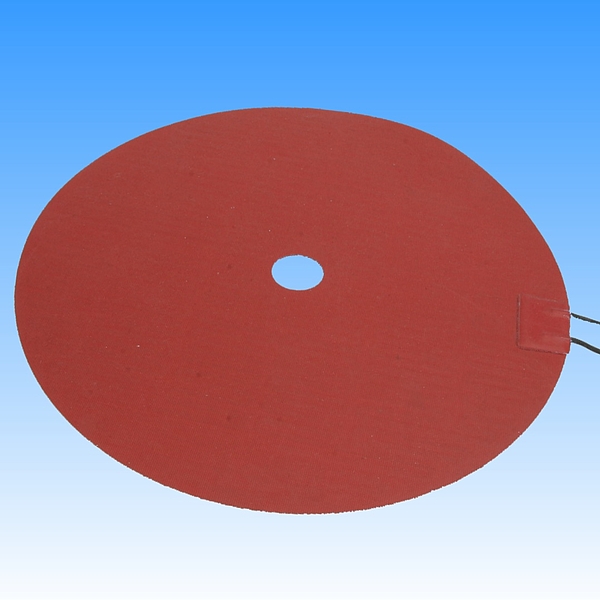

HMI - 200 °C Flexible Silicone Heating Mat, Splash-Proof
Silicone heating elements can be used for surfaces and cylindrical bodies. They are produced according to customer requirements and with heater power rates adapted to the respective application. They are very flexible and available in many different shapes and sizes. Boreholes and cut-outs are possible.
As a result of the specific power distribution, very even or individual temperature profiles can be realized.
Available as foils, mats or formed parts they offer an economic solution for many heating tasks.
Optional, integrated temperature sensors and thermal switches are available.
Technical Data
| nominal temperature | 200 °C |
| nominal voltage | 230 V+, 115 V~, 42V~ and others |
| min. ambient temperature | -60 °C |
| surface power | 6500 W/m² (standard), max. 2 W/cm² |
| thickness heating element | ca. 3 mm standard, min. 1 mm |
| max. dimensions | 940 mm × 3000 mm |
| material | silicone, silicone-coated glass braid |
| fixng options | gluing, binding, velcro, pressing-on |
| temperature sensor | vulcanized or in sensor pocket |
| thermal insulation (optional) | 4/8 mm, max. 40 mm |
