HBV - 450 °C - Heating Tape with Outer Stainless Steel Protective Braid

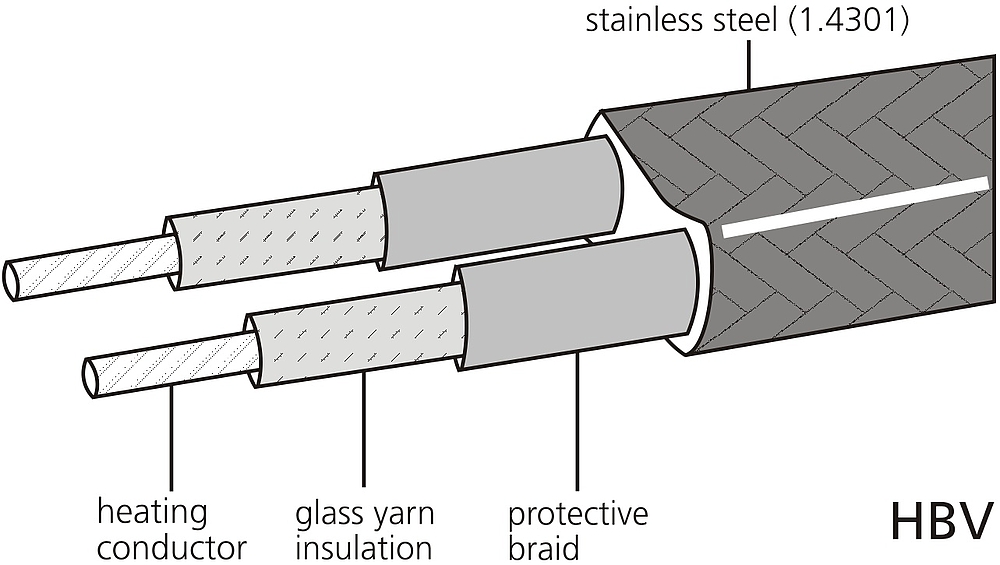

Heating tape with multiple electrical glass-yarn insulation and protective braid made of 1.4301 (V2A), which is connected to the protective earth conductor. The close braiding minimizes the release of fibers.

Technical Data

nominal temperature: 450 °C
nominal voltage: 230 V~
connection cable: 0.5 m
min. bending radius: 10 mm
thickness: 5 mm
breadth: 30 mm
protective braid: nickel
not humidity-proof
with connection box

Other lengths and power ratings are available at short notice.

Order Data

order no. meter watt
020331 0.5 100
020332 1.0 250
020333 1.5 350
020334 2.0 500
020335 2.5 600
020336 3.0 750
020337 5.0 1250
020338 7.0 1550

Horst Heating Tape HBV
HBV - 450 °C - Heating Tape with Outer Steel Protective Baid

Connection box VTH (included in the scope of delivery)
