HFH/HFB - 350 °C - Textile Heating Jackets for Flanges

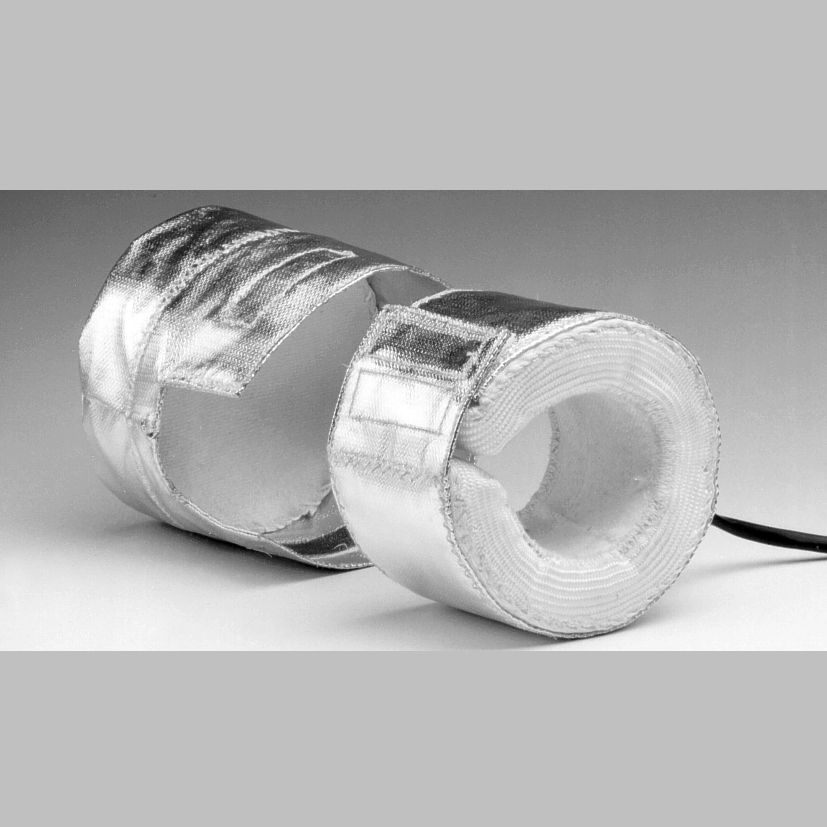

HFH and HFB for flanges on pipes and containers can be used for heating or compensation of heat loss. Available for all common flanges. Velcro fasteners allow easy mounting / demounting.
The heating surface is glass-yarn-insulated, the mantle consists of aluminum-coated glass fiber fabric. Front sides of blind flanges can be closed with an additional insulation cap, easily fixed with velcro fasteners.
Technical Data
| nominal temperature | 350 °C |
| nominal voltage | 230 V~ |
| connection | silicone-insulated connection line with wire end sleeves |
| no protective earth | |
| not humidity proof |
Order Data HFH Flange Heating Jackets

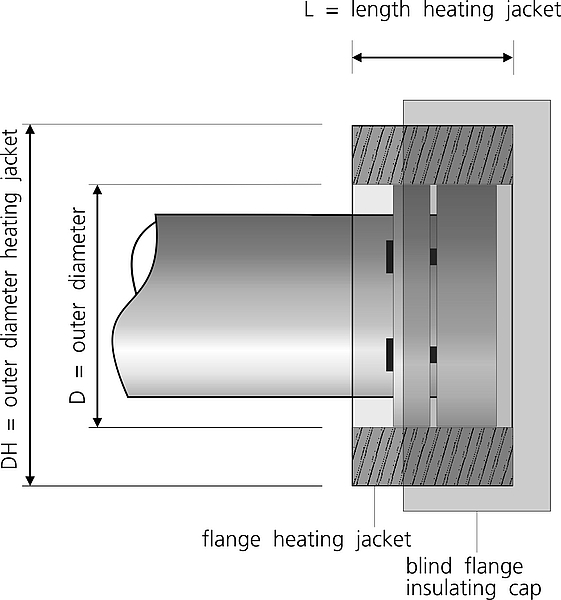

| order no. | type | outer-Ø D flange [mm] | outer-Ø DH heating [mm] | length L heating [mm] | power at 230 V~ [W] |
| 034001 | HFH16 | 33,8 | 93 | 25 | 8 (42 V) |
| 034002 | HFH35 | 69,5 | 129 | 50 | 40 |
| 034003 | HFH63 | 113,5 | 173 | 60 | 65 |
| 034004 | HFH100 | 152 | 212 | 75 | 90 |
| 034005 | HFH150 | 202,5 | 262 | 75 | 140 |
| 034006 | HFH200 | 253 | 313 | 80 | 180 |
| 034007 | HFH250 | 306 | 366 | 80 | 220 |
