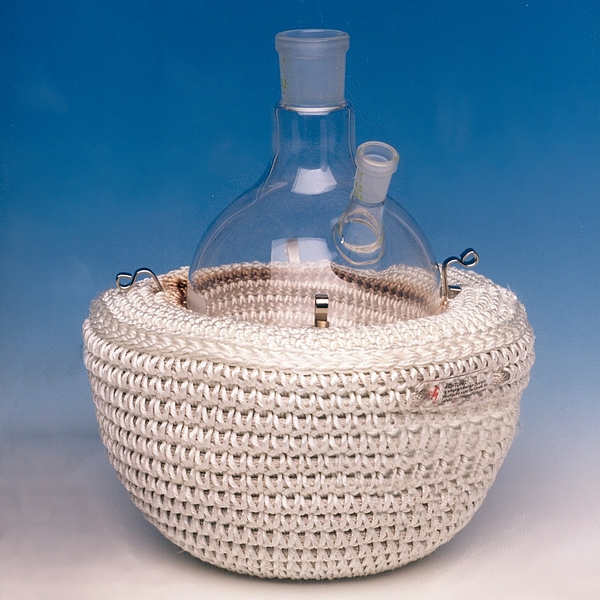

HG - 450 °C - Glass Yarn Heating Mantle

This high-performance heating mantle can be fixed with a support ring. The heating conductor made of flexible glass yarn perfectly adapts to the glass flask.

The heating mantle has to be connected to the temperature regulating device with separate connection lines for thermocouple and heating zone.

The electrical insulation is not humidity-proof and requires special safety measures during operation.

Technical Data

nominal temperature: 450 °C
nominal voltage: 230 V~
thermoelement: NiCr-Ni (K)
protection category: IP 30 (EN 60529)
connection: wire end sleeves

Even for temperatures up to 900 °C, HG heating mantles can be offered on demand.



Order Data

order no. ml/l heat.zones
014101 25 1
014102 50 1
014103 100 2
014104 250 2
014105 500 2
014106 1 2
014107 2 2
014108 3 3
014109 4 3
014110 5 3
014111 6 3
014112 10 3
014113 20 3

acessory: support ring

order no. ml/l
080103 100
080104 250
080105 500
080106 1
080107 2
080109 4

Horst Glass Yarn Heating Mantle HG - 450 °C
Glass Yarn Heating Mantle HG - 450 °C
