Heating Hose Series H 13 B

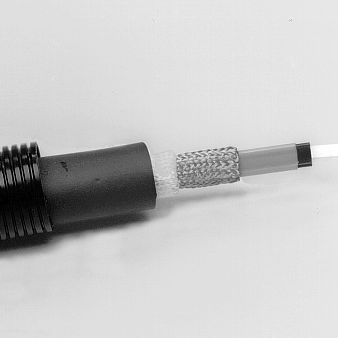

Self-Limiting Heating Hose with Irremovable PTFE Inner Tube
Self-limiting heating hoses continuously adapt their heating power depending on media and ambient temperatures: the heating power increases when the temperature falls, it decreases when the temperature rises. If temperature differences occur in some sections of the heating hose, the heating power is adapted section by section to the ambient temperature. The result is a homogenous heating-up.
Self-limiting heating hoses are designed for heat loss compensation of tempered media. The temperature specifications of H 13 B heating hoses refer to the maximum admissible medium temperature and its maintenance at 10 °C ambient temperature.
Ready-made heating hoses can optionally be equipped with thermocouples or Pt100 temperature sensors.

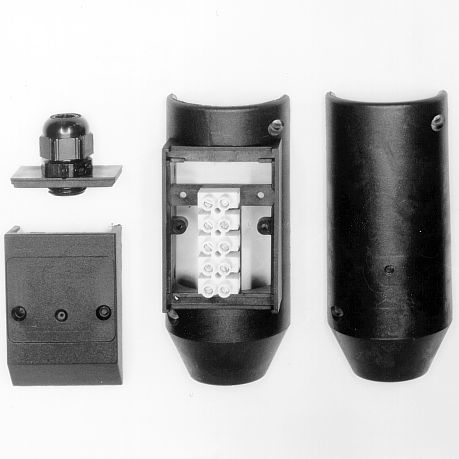

Up to a length of 100 m, H 13 B heating hoses are also available by the meter for self-finishing. The length of the heating hose can be determined on the spot (max. length 80 m / 60 m), afterwards it will be mechanically and electrically finished with optional finishing sets.
Technical Data
| nominal voltage: | 230 V~, other nominal voltages on request |
| armatures: | without, PTFE tube protruding |
| end caps: | with strain-relief and bend protection in PA 6 |
| outer protective hose: | polyamide 6 corrugated hose, flame-retardant, halogen-free |
| outside diameter: | 42 mm +/- 10 % |
| outer diameter: | with strain-relief and bend protection in PA 6 or silicone |
| protection category: | IP 44 (EN 60529) |
| safety class: | I |
H 13 B - 60 °C Maintain Temperature
heating power: 31 W/m at 10 °C, max. length: 80 m
| DN | max.pressure | min. bend.rad. | order no. price per m |
| 4 | 16.2 bar | 200 mm | 891841 |
| 6 | 11.7 bar | 250 mm | 891842 |
| 8 | 90 bar | 300 mm | 891843 |
| 10 | 7.2 bar | 350 mm | 891844 |
| 12 | 5.4 bar | 400 mm | 891845 |
