Heating Hose Series H 13 A

Heated Sampling Hose with Exchangeable PTFE Inner Tube

The PTFE inner tube of this heated sampling hose runs without being interrupted by metal screwings from the gas take-off point to the analyzer. In case of deposits, it can easily be exchanged.

The inside of the heated carrier hose, through which the inner tube is led, consists of a continuous metal corrugated hose. This metal hose offers very good heat conduction, homogenous heat distribution to the entire length, light weight and high flexibility.

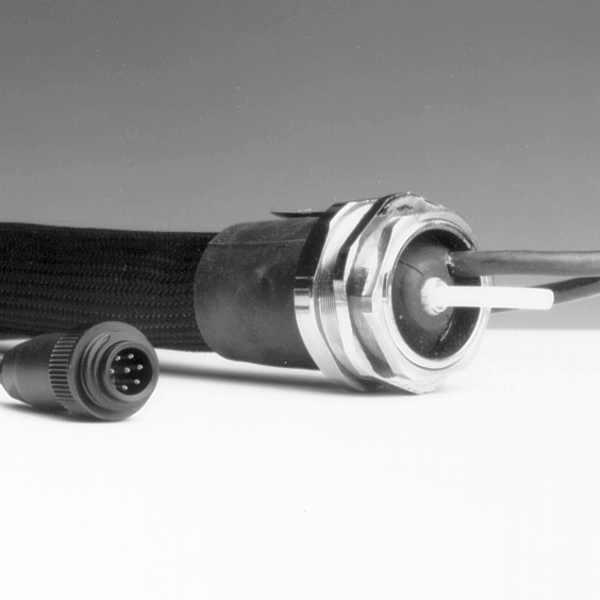

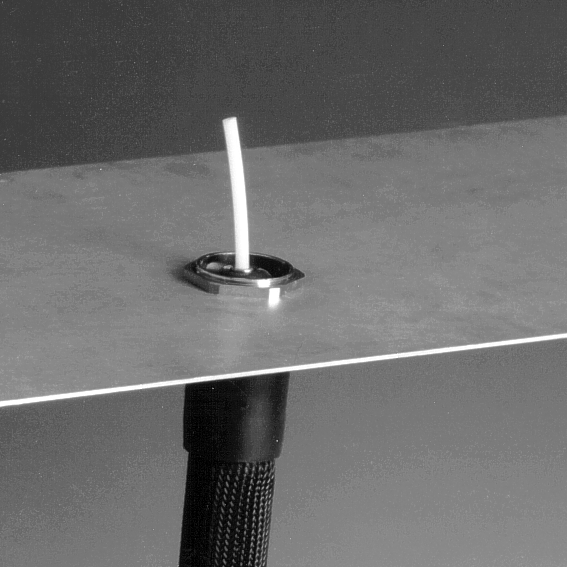

Cable screwings at both ends allow easy mounting. With these cable screwings the heating hose can be vertically fixed on a chimney (please consider strain-relief) or on the side wall of an analytic instrument.

The maximum operating temperature of PTFE is 250 °C. For higher temperatures, tubes made of VA, titanium or similar materials are required.

Configurator

Logo Heating Hose Configurator
Button Heating Hose Configurator

There are many variants for heating hoses. The fastest way to your specific product is our heating hose configurator. If a desired option is not offered in the heating hose configurator, select "free input" and describe your wish in the input field or in the enquiry.



Technical Data

max. length: 50 m
nominal diameter (DN): 4 ... 20 (larger sizes on request)
nominal voltage: 230 V~ (others on request)
temperature sensor: Fe-CuNi (J) or other types (see: optional equipment)
fixing: screwings
borehole: Ø 47 mm
connection: silicone hose line (3 m) with integrated sensor line and multi-pole plug
outer protective hose: polyamide braid, black (others see: outer protective hoses)

Inquiry Form Heating Hose H 13 A



Pricing Information

H 13 A - 100 °C, with PTFE inner tube

DN W/m press. max. at 100°C min. bend. radius order no. basic price order no. price per m
4 100 16.2 bar 200 mm 891101 891121
6 120 11.7 bar 250 mm 891102 891122
8 140 90 bar 300 mm 891103 891123
10 160 7.2 bar 350 mm 891104 891124
12 200 5.4 bar 400 mm 891105 891125

H 13 A - 200 °C, with PTFE inner tube

DN W/m press. max. at 200°C min. bend. radius order no. basic price order no. price per m
4 120 14.4 bar 200 mm 891141 891161
6 140 10.4 bar 250 mm 891142 891162
8 160 8 bar 300 mm 891143 891163
10 200 6.4 bar 350 mm 891144 891164
12 260 4.8 bar 400 mm 891145 891165

H 13 A - 250 °C, with PTFE inner tube

DN W/m press. max. at 250°C min. bend. radius order no. basic price order no. price per m
4 120 12.6 bar 200 mm 891181 891201
6 140 9.1 bar 250 mm 891182 891202
8 160 7 bar 300 mm 891183 891203
10 200 5.6 bar 350 mm 891184 891204
12 260 4.2 bar 400 mm 891185 891205

H 13 A - 350 °C, with VA inner tube

DN W/m press. max. at 350°C min. bend. radius order no. basic price order no. price per m
4 170 42 bar 300 mm 891221 891241
6 200 42 bar 350 mm 891222 891242
8 220 35 bar 400 mm 891223 891243

Replacement inner tubes

DN order no. (running m) Material order no. (running m) material
4 800010 PTFE 800020 VA
6 800011 PTFE 800021 VA
8 800012 PTFE
10 800013 PTFE
12 800015 PTFE
